Sintered Bronze Silencers

Sintered Bronze Mufflers | Brass Silencers

pneumatic sintered bronze silencer, muffler

BSL standard sintered bronze silencer (also called sintered bronze muffler) is widely used on the exhausts of valves to reduce the noise and prevent contamination from entering open exhaust ports and causing premature valve failure. The thread is made of brass and the noise absorbing material is made from sintered bronze. External tightening with a flat wrench or socket wrench. Thread ranges from M5, 10-32UNF to 2".

Material of BSL Sintered Bronze Silencer

  • Body(noise absorbing material): Sintered Bronze
  • Base(thread): Brass

Function of Pneumatic Silencers and Pneumatic Mufflers

  • To reduce noise and let pneumatic devices work at a safe and comfortable noise level
  • As a filter to prevent metal chips, abrasive grits, dust and other contaminants from entering open exhaust ports and causing premature valve failure

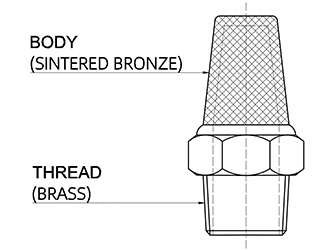

Construction | Specifications

construction - BSL sintered bronze silencer
Fluid Admitted: Compressed Air
Working Pressure: 0~1.0MPa | 0~150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: -10~80°C | 14~176°F
Body(noise absorbing material): Sintered Bronze
Base(thread): Brass

Products of BSL Standard Silencer - Pneumatic Muffler

Part No. Male Thread Size
BSL 01 R, PT, BSPT 1/8
BSL 02 R, PT, BSPT 1/4
BSL 03 R, PT, BSPT 3/8
BSL 04 R, PT, BSPT 1/2
BSL 06 R, PT, BSPT 3/4
BSL 08 R, PT, BSPT 1
BSL 10 R, PT, BSPT 1-1/4
BSL 12 R, PT, BSPT 1-1/2
BSL 16 R, PT, BSPT 2
BSL G01 BSPP, G 1/8
BSL G02 BSPP, G 1/4
BSL G03 BSPP, G 3/8
BSL G04 BSPP, G 1/2
BSL G06 BSPP, G 3/4
BSL G08 BSPP, G 1
BSL G10 BSPP, G 1-1/4
BSL G12 BSPP, G 1-1/2
BSL G16 BSPP, G 2
BSL U10 10-32UNF
BSL N01 1/8 NPT
BSL N02 1/4 NPT
BSL N03 3/8 NPT
BSL N04 1/2 NPT
BSL N06 3/4 NPT
BSL N08 1 NPT
BSL N10 1-1/4 NPT
BSL N12 1-1/2 NPT
BSL N16 2 NPT
BSL M5x0.8 M5 x 0.8
BSL M6x1 M6 x 1
BSL M8x1 M8 x 1
BSL M8x1.25 M8 x 1.25
BSL M10x1 M10 x 1
BSL M10x1.25 M10 x 1.25
BSL M12x1.25 M12 x 1.25
BSL M14x1.5 M14 x 1.5
BSL M16x1.5 M16 x 1.5
BSL M20x1.5 M20 x 1.5

* Not all Metric thread sizes are list here. Pls contact us if you would order other Metric thread sizes.
