Pneumatic Silencers | Pneumatic Mufflers

sintered stainless steel silencer, stainless steel filter

SSL standard sintered stainless steel silencer (stainless steel exhaust muffler) is widely used on the exhausts of valves to suppress the exhaust noise of air release. Meanwhile, sintered stainless steel silencer can protect debris from entering the valve ports. The thread is made of stainless steel and the noise absorbing material is sintered stainless steel. External tightening with a flat wrench or socket wrench. Thread ranges from M5..., 10-32UNF... 1/8" to 2".

Material of Standard Sintered Stainless Steel Silencer

  • Body(noise absorbing material): Sintered Stainless Steel (SS304, SS316, SS316L)
  • Base(thread): Stainless Steel (SS304, SS316, SS316L)

Construction | Specifications

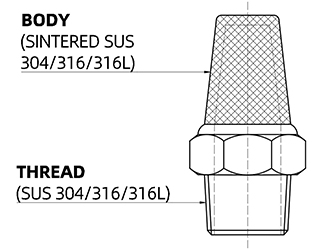

construction of standard sintered SUS muffler
Fluid Admitted: Compressed Air
Working Pressure: 0~1.0MPa | 0~150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: -25～150°C | -13～302°F
Body(noise absorbing material): Sintered Stainless Steel
Base(thread): Stainless Steel

Products of SSL Standard Sintered Stainless Steel Silencer

Part No. Male Thread Size
SSL 01 R, PT, BSPT 1/8
SSL 02 R, PT, BSPT 1/4
SSL 03 R, PT, BSPT 3/8
SSL 04 R, PT, BSPT 1/2
SSL 06 R, PT, BSPT 3/4
SSL 08 R, PT, BSPT 1
SSL G01 BSPP, G 1/8
SSL G02 BSPP, G 1/4
SSL G03 BSPP, G 3/8
SSL G04 BSPP, G 1/2
SSL G06 BSPP, G 3/4
SSL G08 BSPP, G 1
SSL U10 10-32UNF
SSL N01 1/8 NPT
SSL N02 1/4 NPT
SSL N03 3/8 NPT
SSL N04 1/2 NPT
SSL N06 3/4 NPT
SSL N08 1 NPT
SSL M5x0.8 M5 x 0.8
SSL M6x1 M6 x 1
SSL M8x1 M8 x 1
SSL M8x1.25 M8 x 1.25
SSL M10x1 M10 x 1
SSL M10x1.25 M10 x 1.25
SSL M12x1.25 M12 x 1.25
SSL M14x1.5 M14 x 1.5
SSL M16x1.5 M16 x 1.5
SSL M20x1.5 M20 x 1.5

* Not all Metric thread sizes are list here. Pls contact us if you would order other Metric thread sizes.

Parent Category: Pneumatic Mufflers | Silencers | Filters
