BSSM Brass Body Silencer with Sintered Stainless Steel Breather Vent

Brass Body Silencer with Sintered Stainless Steel Breather Vent

Brass body silencer with sintered stainless seel breather bent is used in applications that require equipment to have noise reduce and protect debris from entering the valve ports. The thread of brass body silencer with sintered stainless steel breather bent is made of brass and the noise absorbing material is sintered stainless steel. External tightening with a flat wrench or socket wrench. Thread ranges from M5, 10-32UNF to 2".

Material of Brass Body Silencer with Sintered Stainless Steel Breather Vent

  • Body(noise absorbing material): Sintered Stainless Steel (SS304, SS316)
  • Base(thread): Brass

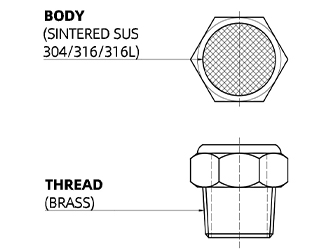

Construction | Specifications

material of brass body silencer with sintered stainless steel breather vent
Fluid Admitted: Compressed Air
Working Pressure: 0~1.0MPa | 0~150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: -10~80°C | 14~176°F
Body(noise absorbing material): Sintered SUS
Base(thread): Brass

Products of BSSM Brass Body Silencer with Sintered Stainless Steel Breather Vent

Part No. Male Thread Size
BSSM 01 R, PT, BSPT 1/8
BSSM 02 R, PT, BSPT 1/4
BSSM 03 R, PT, BSPT 3/8
BSSM 04 R, PT, BSPT 1/2
BSSM 06 R, PT, BSPT 3/4
BSSM 08 R, PT, BSPT 1
BSSM 10 R, PT, BSPT 1-1/4
BSSM 12 R, PT, BSPT 1-1/2
BSSM 16 R, PT, BSPT 2
BSSM N01 1/8 NPT
BSSM N02 1/4 NPT
BSSM N03 3/8 NPT
BSSM N04 1/2 NPT
BSSM N06 3/4 NPT
BSSM N08 1 NPT
BSSM N10 1-1/4 NPT
BSSM N12 1-1/2 NPT
BSSM N16 2 NPT
BSSM G01 BSPP, G 1/8
BSSM G02 BSPP, G 1/4
BSSM G03 BSPP, G 3/8
BSSM G04 BSPP, G 1/2
BSSM G06 BSPP, G 3/4
BSSM G08 BSPP, G 1
BSSM G10 BSPP, G 1-1/4
BSSM G12 BSPP, G 1-1/2
BSSM G16 BSPP, G 2
BSSM U10 10-32UNF
BSSM M5x0.8 M5 x 0.8
BSSM M6x1 M6 x 1
BSSM M8x1 M8 x 1
BSSM M8x1.25 M8 x 1.25
BSSM M10x1 M10 x 1
BSSM M10x1.25 M10 x 1.25
BSSM M12x1.25 M12 x 1.25
BSSM M14x1.5 M14 x 1.5
BSSM M16x1.5 M16 x 1.5
BSSM M20x1.5 M20 x 1.5

* Not all Metric thread sizes are list here. Pls contact us if you would order other Metric thread sizes.
