Pneumatic Mufflers | Silencers | Filters

breather vent silencer, sintered brass muffler

Sintered bronze breather vent silencer is used in applications that require equipment to have protection from debris entering the valve ports and suppress the exhaust noise of air release. The thread is made of brass and the noise absorbing material is sintered bronze. External tightening with a flat wrench or socket wrench. Thread ranges from M5, M6, 10-32UNF to 2".

Material of Sintered bronze breather vent silencer

  • Body(noise absorbing material): Sintered Bronze
  • Base(thread): Brass

Construction | Specifications

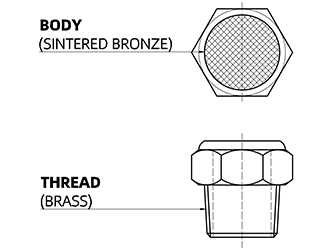

construction of breather vent muffler
Fluid Admitted: Compressed Air
Working Pressure: 0~1.0MPa | 0~150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: -10～80°C | 14～176°F
Body(noise absorbing material): Sintered Bronze
Base(thread): Brass

Products of BSLM Breather Vent Silencer

Part No. Male Thread Size
BSLM 01 R, PT, BSPT 1/8
BSLM 02 R, PT, BSPT 1/4
BSLM 03 R, PT, BSPT 3/8
BSLM 04 R, PT, BSPT 1/2
BSLM 06 R, PT, BSPT 3/4
BSLM 08 R, PT, BSPT 1
BSLM 10 R, PT, BSPT 1-1/4
BSLM 12 R, PT, BSPT 1-1/2
BSLM 16 R, PT, BSPT 2
BSLM G01 BSPP, G 1/8
BSLM G02 BSPP, G 1/4
BSLM G03 BSPP, G 3/8
BSLM G04 BSPP, G 1/2
BSLM G06 BSPP, G 3/4
BSLM G08 BSPP, G 1
BSLM G10 BSPP, G 1-1/4
BSLM G12 BSPP, G 1-1/2
BSLM G16 R, PT, BSPT 2
BSLM U10 10-32UNF
BSLM N01 1/8 NPT
BSLM N02 1/4 NPT
BSLM N03 3/8 NPT
BSLM N04 1/2 NPT
BSLM N06 3/4 NPT
BSLM N08 1 NPT
BSLM N10 1-1/4 NPT
BSLM N12 1-1/2 NPT
BSLM N16 2 NPT
BSLM M5×0.8 M5 x 0.8
BSLM M6×1 M6 x 1
BSLM M8×1 M8 x 1
BSLM M8×1.25 M8 x 1.25
BSLM M10×1 M10 x 1
BSLM M10×1.25 M10 x 1.25
BSLM M12×1.25 M12 x 1.25
BSLM M14×1.5 M14 x 1.5
BSLM M16×1.5 M16 x 1.5
BSLM M20×1.5 M20 x 1.5

* Not all Metric thread sizes are list here. Pls contact us if you would order other Metric thread sizes.
