BSLDE Extended Sintered Bronze Silencer

extended sintered bronze silencer

BSLDE is an extended sintered bronze silencer, which is made from full sintered bronze. Thread size can be 1/8" and 1/4".

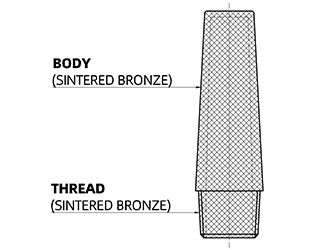

Material of Extended Sintered Bronze Silencer

  • Body(noise absorbing material): Sintered Bronze
  • Base(thread): Sintered Bronze

Construction | Specifications

structure of extended sintered bronze muffler
Fluid Admitted: Compressed Air
Working Pressure: 0~1.0MPa | 0~150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: -10～80°C | 14～176°F
Body(noise absorbing material): Sintered Bronze
Base(thread): Sintered Bronze

Products of BSLDE Extended Sintered Bronze Silencer

Part No. Male Thread Size
BSLDE 01 R, PT, BSPT 1/8
BSLDE 02 R, PT, BSPT 1/4
BSLDE G01 BSPP, G 1/8
BSLDE G02 BSPP, G 1/4
BSLDE N01 1/8 NPT
BSLDE N02 1/4 NPT

* Not all Metric thread sizes are list here. Pls contact us if you would order other Metric thread sizes.

Parent Category: Pneumatic Mufflers | Silencers | Filters
