BESLD Flow Control Silencer

flow control silencer - flow control muffler

Flow control silencer (flow control muffler, speed control silencer) provides an infinite variation of metering air flow at an acceptable sound level on exhaust ports of air valves with complete safety. The body is made of sintered bronze and the base is made of brass.

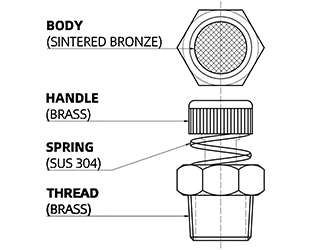

Material of Flow Control Muffler

  • Body(noise absorbing material): Sintered Bronze
  • Base(thread): Brass
  • Spring: SUS 304

Construction | Specifications

construction of flow control silencer
Fluid Admitted: Compressed Air
Working Pressure: 0~1.0MPa | 0~150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: -10～80°C | 14～176°F
Body(noise absorbing material): Sintered Bronze
Base(thread): Brass

Products of BESLD Flow Control Silencer

Part No. Male Thread Size
BESLD 01 R, PT, BSPT 1/8
BESLD 02 R, PT, BSPT 1/4
BESLD 03 R, PT, BSPT 3/8
BESLD 04 R, PT, BSPT 1/2
BESLD 06 R, PT, BSPT 3/4
BESLD 08 R, PT, BSPT 1
BESLD G01 BSPP, G 1/8
BESLD G02 BSPP, G 1/4
BESLD G03 BSPP, G 3/8
BESLD G04 BSPP, G 1/2
BESLD G06 BSPP, G 3/4
BESLD G08 BSPP, G 1
BESLD N01 1/8 NPT
BESLD N02 1/4 NPT
BESLD N03 3/8 NPT
BESLD N04 1/2 NPT
BESLD N06 3/4 NPT
BESLD N08 1 NPT
BESLD M8x1 M8 x 1
BESLD M8x1.25 M8 x 1.25
BESLD M10x1 M10 x 1
BESLD M10x1.25 M10 x 1.25
BESLD M12x1.25 M12 x 1.25
BESLD M14x1.5 M14 x 1.5
BESLD M16x1.5 M16 x 1.5
BESLD M20x1.5 M20 x 1.5

* Not all Metric thread sizes are list here. Pls contact us if you would order other Metric thread sizes.
