Push in Fittings for Metric / Inch Tubing, BSPP, G Connection Thread

Pneuflex's push in fittings with BSPP, G thread are made from nickel plated brass and PBT. All BSPP thread push in fittings have an captive O-ring for a superior and efficent seal. Pneuflex's push in fittings with BSPP, G thread are available in a variety of sizes to accommodate metric size tubing ranging from 4mm O.D to 16mm O.D and imperial size tubing ranging from 1/8 O.D to 1/2 O.D. Working pressure is 0~1.0Mpa (0~150psi), working temperature is 0~60ºC (32~140ºF).

Features of Pneuflex's Push in Fittings for Metric / Inch Tubing, BSPP, G Connection Thread

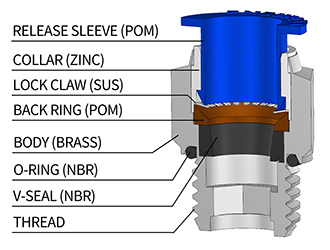

• Release sleeves and Lock-claw inside push in fittings provide a low disconnection force for easy removal of the tubing.
• An captive o-ring on the thread for a superior seal.
• Optional multiple colors for release sleeve.
• Pneuflex's BSPP thread push in fittings come in a wide variety of models and sizes.
• All Pneuflex push in fittings are RoHS compliant

Pls kindly note: the push in fittings in this series are not intended for use in potable water systems.

Construction | Specifications

Fluid Admitted: Air, Vaccum, Water(no freezing)
Body Material: Nickel Plated Brass & PBT Plastic
Thread Material: Nickle Plated Brass
Seal, O-ring: NBR
Working Pressure: 0~1.0MPa | 0~150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: 0~60°C | 32~140°F
Lock Claw: Stainless Steel(SUS)
Applicable Tube: PU / PA / PE / PVC

Applicable Tubing Outer Diameter

Metric Size Tube Outer Diameter

ØD	3mm	4mm	5mm	6mm	7mm	8mm	9mm	10mm	12mm	14mm	15mm	16mm
Code	03	04	05	06	07	08	09	10	12	14	15	16

Inch Size Tube Outer Diameter

ØD	1/8"	5/32"	3/16"	1/4"	5/16"	3/8"	1/2"	5/8"
Code	1/8	5/32	3/16	1/4	5/16	3/8	1/2	5/8

Applicable BSPP, G Connection Thread Size

BSPP, G - 55° Parallel Pipe Thread

Thread	G1/16	G1/8	G1/4	G3/8	G1/2
Code	G1/16	G01	G02	G03	G04
