PU 15 | 15mm O.D Tube, Union Straight | 15mm Push in Fitting
PU 15 is a type of 15mm push in fitting union straight, which is used to connect two 15mm O.D tubes in line. 15mm push in fitting allows easy connect and disconnection of 15mm O.D tube without tools.
Product Attributes
| Push-in Tubing O.D: | 15mm |
| Fluid Admitted: | Air, Vaccum, Water(no freezing) |
| Body Material: | PBT |
| Seal, O-ring: | NBR |
| Working Pressure: | 0∼1.0MPa | 0∼150psi |
| Proof Pressure: | 3.0Mpa | 435psi |
| Negative Pressure: | -100Kpa | -29.5 In Hg |
| Working Temperature: | 0∼60°C | 32∼140°F |
| Lock Claw: | Stainless Steel(SUS) |
| Applicable Tube: | PU / PA / PE / PVC |

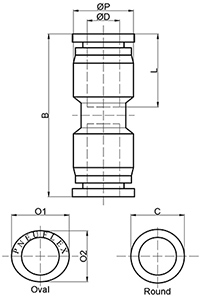

Dimensions of 15mm Push in Fitting, 15mm Union Straight
3D Construction
Optional Shapes and Colors of Release Sleeve
