PU 14 | 14mm Union Straight Push in Fitting, 14mm Push in Fitting
PU 14 is a kind of 14mm union straight push in fitting, which is used to connect two 14mm O.D tubes in line. Release collar and Lock-claw built in the 14mm push in fitting allows easy connection and disconnection of 14mm tubing without causing damage to the tube.
Product Attributes
| Push-in Tubing O.D: | 14mm |
| Fluid Admitted: | Air, Vaccum, Water(no freezing) |
| Body Material: | PBT |
| Seal, O-ring: | NBR |
| Working Pressure: | 0∼1.0MPa | 0∼150psi |
| Proof Pressure: | 3.0Mpa | 435psi |
| Negative Pressure: | -100Kpa | -29.5 In Hg |
| Working Temperature: | 0∼60°C | 32∼140°F |
| Lock Claw: | Stainless Steel(SUS) |
| Applicable Tube: | PU / PA / PE / PVC |

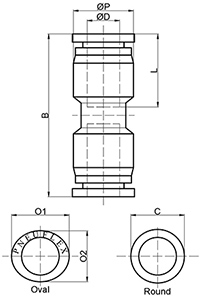

Dimensions of 14mm Union Straight Push in Fitting, 14mm Push in Fitting
3D Construction
Optional Shapes and Colors of Release Sleeve
