PU 1/8 | 1/8 Push in Fitting Union Straight for 1/8" Tubing
PU 1/8 push in fitting union straight is used to connect tubing of two 1/8" O.D tubes in the same direction and allows to connect and disconnect tubing easily without tools.
Product Attributes
| Push-in Tubing O.D: | 1/8" |
| Fluid Admitted: | Air, Vaccum, Water(no freezing) |
| Body Material: | PBT |
| Seal, O-ring: | NBR |
| Working Pressure: | 0∼1.0MPa | 0∼150psi |
| Proof Pressure: | 3.0Mpa | 435psi |
| Negative Pressure: | -100Kpa | -29.5 In Hg |
| Working Temperature: | 0∼60°C | 32∼140°F |
| Lock Claw: | Stainless Steel(SUS) |
| Applicable Tube: | PU / PA / PE / PVC |

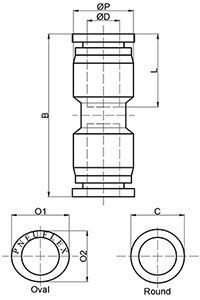

Dimensions of PU 1/8 - 1/8" Push in Fitting Union Straight
3D Construction
Optional Shapes and Colors of Release Sleeve
