PU 09 | 9mm Union Straight Connector | 9mm Push in Fitting

PU 09 union straight connector is a type of plastic push in fitting (9mm push in fitting). PU 09 - 9mm union straight connector is used to connect two 9mm outside diameter pneumatic metric tubings in the same direction..

9mm push in fittings union straight connector
Product Attributes
Push-in Tubing O.D: 9mm
Fluid Admitted: Air, Vaccum, Water(no freezing)
Body Material: PBT
Seal, O-ring: NBR
Working Pressure: 0∼1.0MPa | 0∼150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: 0∼60°C | 32∼140°F
Lock Claw: Stainless Steel(SUS)
Applicable Tube: PU / PA / PE / PVC
Request for Quotation

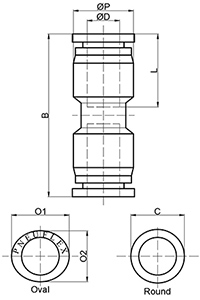

Dimensions of 9mm push in fittings union straight connector

drawing of 9mm union straight connector, 9mm push in fitting

3D Construction

3D construction of 9mm union straight connector

Optional Shapes and Colors of Release Sleeve

release sleeverelease sleeve

Pneuflex's 9mm push in fittings union straight connector is designed to use nylon tubing, polyurethane (PU) tubing, PE tubing, PVC Tubing...
