PU 07 | 7mm Union Straight Push in Fitting, 7mm Pneumatic Fitting

PU 07 union straight connector is a type of plastic push in fitting (7mm push to connect fitting). PU 07 - 7mm union straight connector is used to connect two 7mm outside diameter pneumatic metric tubings in the same direction.

7mm union straight push in fitting
Product Attributes
Push-in Tubing O.D: 7mm
Fluid Admitted: Air, Vaccum, Water(no freezing)
Body Material: PBT
Seal, O-ring: NBR
Working Pressure: 0∼1.0MPa | 0∼150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: 0∼60°C | 32∼140°F
Lock Claw: Stainless Steel(SUS)
Applicable Tube: PU / PA / PE / PVC
Request for Quotation

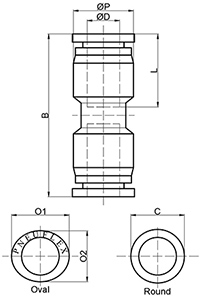

Dimensions of 7mm push in union straight connector fitting

drawing of 7mm union straight connector push in fitting

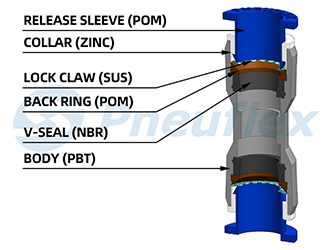

3D Construction

3D construction of 7mm pneumatic fitting

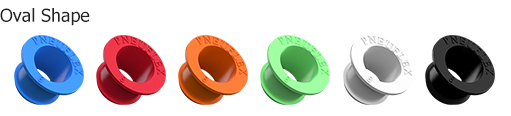

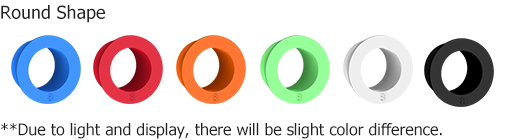

Optional Shapes and Colors of Release Sleeve

release sleeverelease sleeve

Based in China, Pneuflex is manufacturing 7mm union straight push in fittings, 7mm pneumatic fittings and 7mm push in fittings.
