PU 06 | 6mm Union Straight | 6mm Push in Fitting | 6mm Air Fitting
PU 06 union straight is a type of plastic push in fitting (6mm push to connect fitting, 6mm push in fitting). PU 06 - 6mm union straight is used to connect two 6mm outside diameter pneumatic metric tubings in the same direction.
Product Attributes
| Push-in Tubing O.D: | 6mm |
| Fluid Admitted: | Air, Vaccum, Water(no freezing) |
| Body Material: | PBT |
| Seal, O-ring: | NBR |
| Working Pressure: | 0∼1.0MPa | 0∼150psi |
| Proof Pressure: | 3.0Mpa | 435psi |
| Negative Pressure: | -100Kpa | -29.5 In Hg |
| Working Temperature: | 0∼60°C | 32∼140°F |
| Lock Claw: | Stainless Steel(SUS) |
| Applicable Tube: | PU / PA / PE / PVC |

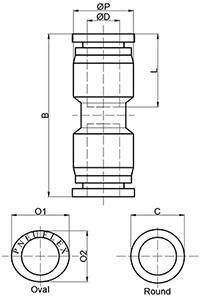

Dimensions of PU 06 - 6mm union straight push in fitting
3D Construction
Optional Shapes and Colors of Release Sleeve
Pneuflex is manufacturing ∅ 6mm push in tube O.D union straight fittings, ∅ 6mm tube push in fittings, ∅ 6mm push to connect tube fittings union straight and 6mm push in air fitting in China. Pneuflex produces 800,000pcs of 6mm push in union straight connector fitting every month.
