PU 05 | 5mm Union Straight Connector | 5mm Push to Connect Fitting
PU 05 is a type of union straight plastic push in fitting connecting two 5mm O.D tubes. 5mm push to connect fitting is used to connect 5mm O.D tubing of same diameter in the same direction.
Product Attributes
| Push-in Tubing O.D: | 5mm |
| Fluid Admitted: | Air, Vaccum, Water(no freezing) |
| Body Material: | PBT |
| Seal, O-ring: | NBR |
| Working Pressure: | 0∼1.0MPa | 0∼150psi |
| Proof Pressure: | 3.0Mpa | 435psi |
| Negative Pressure: | -100Kpa | -29.5 In Hg |
| Working Temperature: | 0∼60°C | 32∼140°F |
| Lock Claw: | Stainless Steel(SUS) |
| Applicable Tube: | PU / PA / PE / PVC |

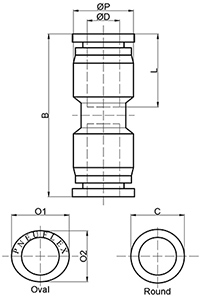

Dimensions of 5mm - 5mm push to connect fittings union straight connector
3D Construction
Optional Shapes and Colors of Release Sleeve
Pneuflex is manufacturing ∅ 5mm push in tube O.D, ∅ 5mm push in union straight fittings, ∅ 5mm push in fittings, ∅ 5mm push to connect fitting and 5mm push in air fitting in China.
