PU 04 | 4mm Union Straight Connector | 4mm Push in Fitting
PU 04 union straight connector is a type of plastic push in fitting (4mm push to connect fitting). PU 04 - 4mm union straight connector is used to connect two 4mm outside diameter pneumatic metric tubings in the same direction.
Product Attributes
| Push-in Tubing O.D: | 4mm |
| Fluid Admitted: | Air, Vaccum, Water(no freezing) |
| Body Material: | PBT |
| Seal, O-ring: | NBR |
| Working Pressure: | 0∼1.0MPa | 0∼150psi |
| Proof Pressure: | 3.0Mpa | 435psi |
| Negative Pressure: | -100Kpa | -29.5 In Hg |
| Working Temperature: | 0∼60°C | 32∼140°F |
| Lock Claw: | Stainless Steel(SUS) |
| Applicable Tube: | PU / PA / PE / PVC |

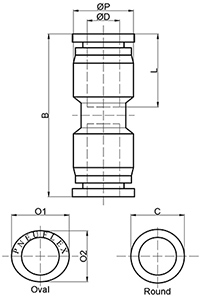

Dimensions of 4mm - 4mm Union Straight Connector | 4mm Metric Push in Fitting
3D Construction
Optional Shapes and Colors of Release Sleeve
∅ 4mm tubing push in fittings union straight | ∅ 4mm tubing push in fittings | 4mm push to connect fittings | 4mm push in air line fitting | 4mm pneumatic fitting
